909RPDA

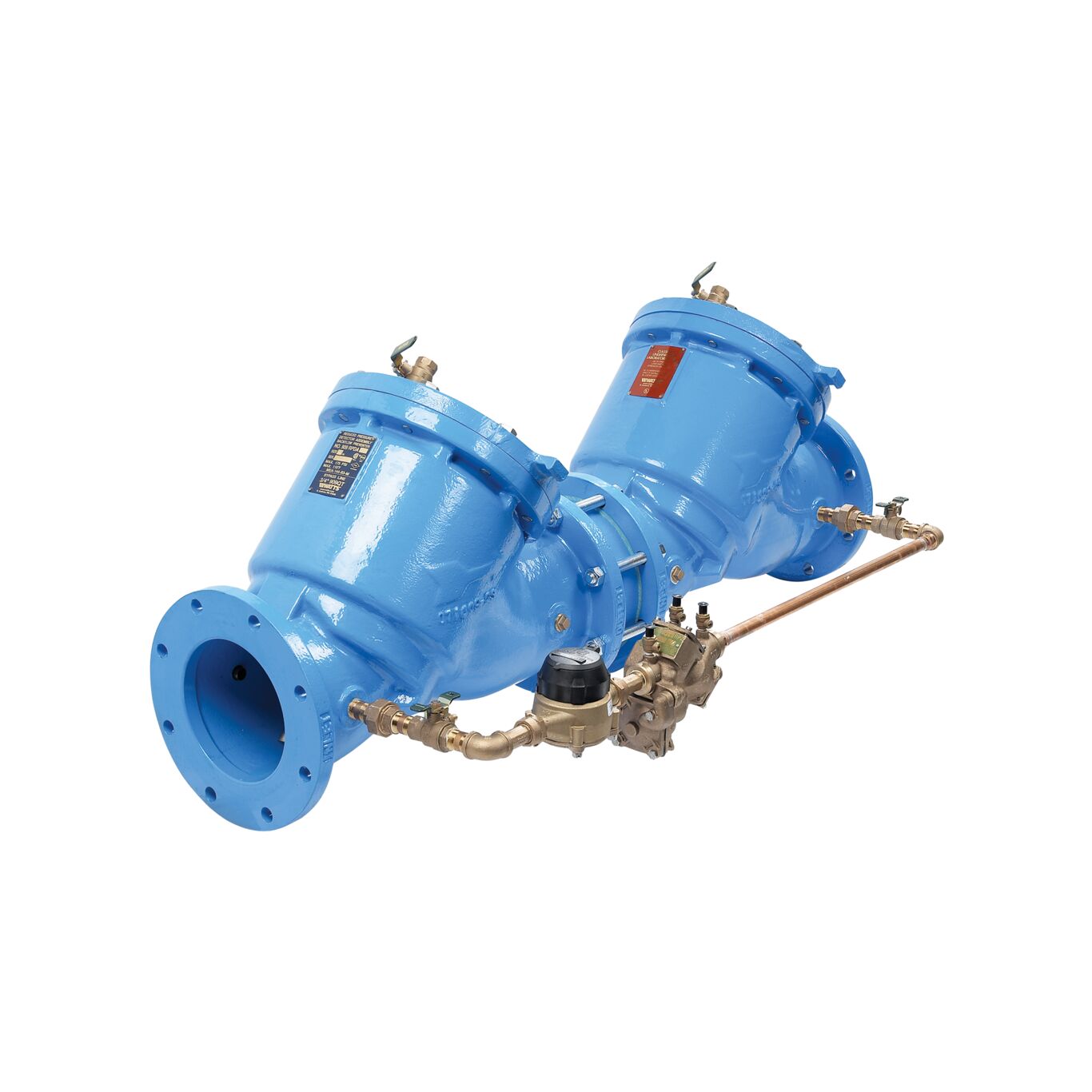

Reduced Pressure Detector Assembly Backflow Preventers with Flood Sensor, Cast Iron, 2 1/2 - 10 IN Sizes
Series 909RPDA Reduced Pressure Detector assembly backflow preventers feature a flood sensor using SentryPlus Alert® technology to detect continuous discharge from the relief valve. When paired with an add on connection kit, the sensor is activated to relay alerts for potential flooding events. Connection kit options include BMS, cellular communication, and the Sensor Control Monitor which enables integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
This series prevents the reverse flow of contaminated water caused by backsiphonage or backpressure from entering the potable water supply. The 909RPDA incorporates a meter to detect ground leaks and unauthorized illegal taps, greatly reducing annual water expenses. It consists of a coated cast iron body with stainless steel trim, cast iron gate valves, a pressure-differential relief valve, shutoff valves, and bronze ball-type test cocks. Maximum working pressure is 175 psi (12.06 bar).
To learn more visit: https://www.watts.ca/floodprotectionsystem
The coating on this backflow assembly uses ArmorTek®, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion.
To learn more visit: https://www.watts.ca/armortek
Features
- Sensor on the relief valve for flood detection
- Integrates with the Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa platform by Wi-Fi connectivity
- Cast iron body construction with patented 3-part ArmorTek® epoxy coating for advanced corrosion resistance
- Provide detection point for costly water leaks and illegal taps
- Unique two-channel relief valve provides maximum capacity during emergency conditions and stops potential backflow using air-in/water-out principle
- Modular design facilitates easy maintenance and assembly
- Replaceable stainless steel seats
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
